Parallel Connectors

For connecting two conductors in parallel arrangement.

For equal diameters with one screw

2 Products

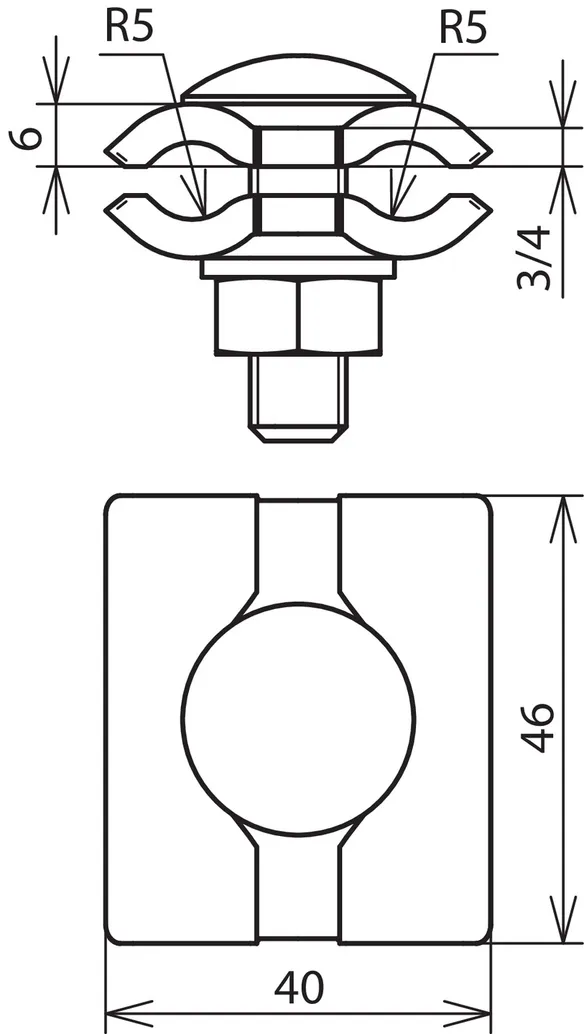

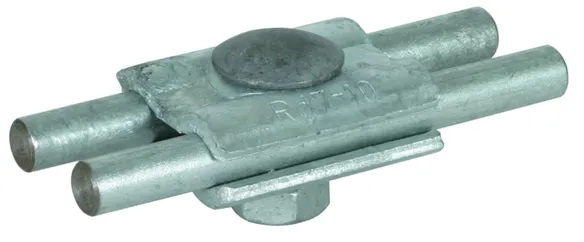

Part No. 306020 PV 7.10 FRM10X35 STTZN

GTIN 4013364096264, Customs tariff No. (EU): 85359000, Gross weight: 147.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 STTZN
Part No.: 306020
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 4.0 kA
*) For exact classification, see test certificate.

Product 306020 was added to Notepad.

Go to Notepad

Product 306020 was added to the cart.

Go to Web-Shop

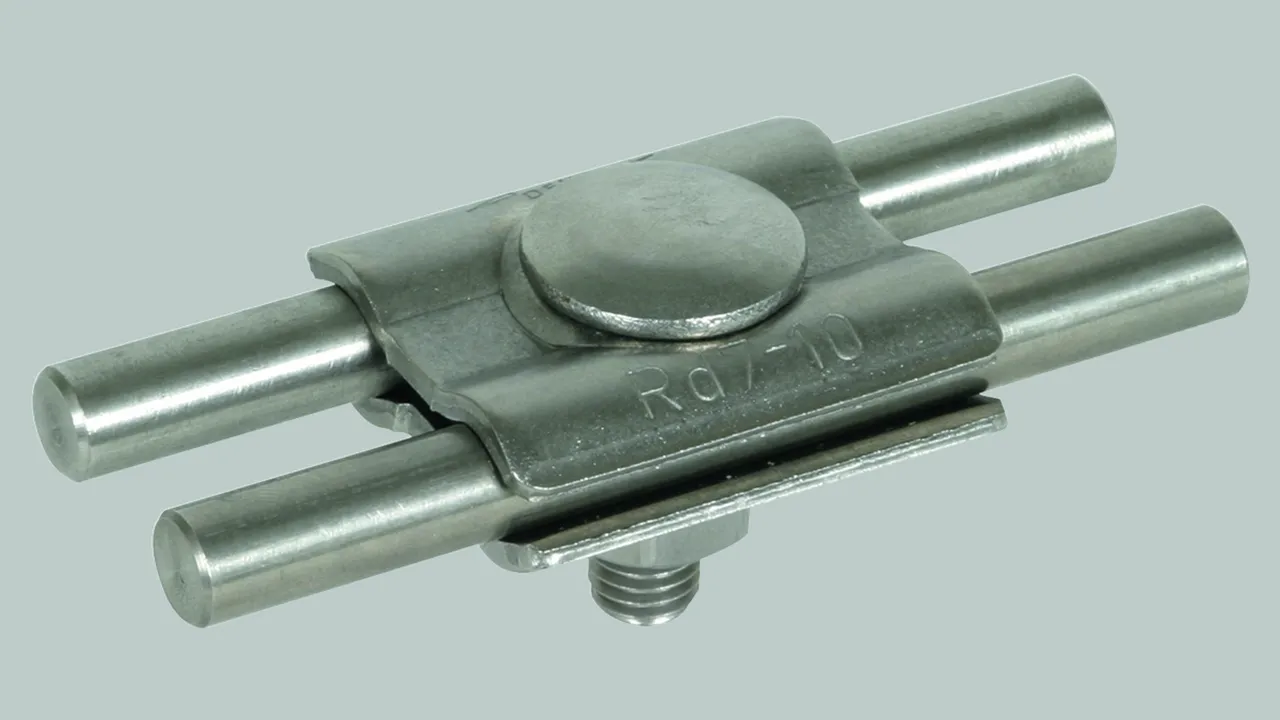

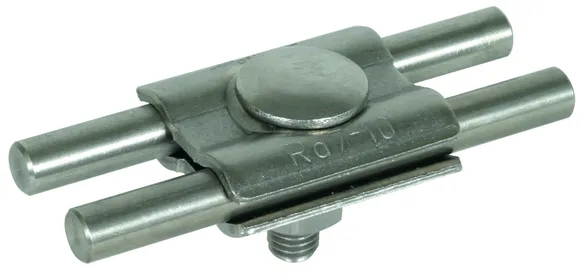

Part No. 306029 PV 7.10 FRM10X35 V4A

GTIN 4013364129467, Customs tariff No. (EU): 85359000, Gross weight: 122.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with one screw, StSt (V4A)
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 mm
Clamping range (stranded / cable): 25-120 mm2
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 V4A
Part No.: 306029
or equivalent.

Certificates



Technical data

Material of clamp StSt (V4A)
Clamping range Rd / Rd 7-10 mm
Clamping range (stranded / cable) 25-120 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 2.9 kA
*) For exact classification, see test certificate.

Product 306029 was added to Notepad.

Go to Notepad

Product 306029 was added to the cart.

Go to Web-Shop

For equal diameters with two screws

2 Products

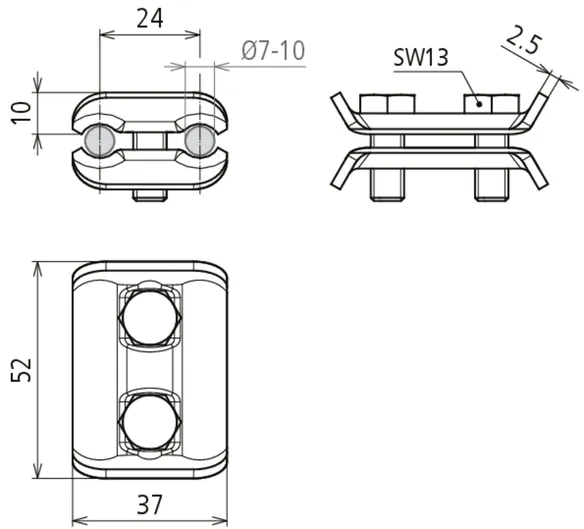

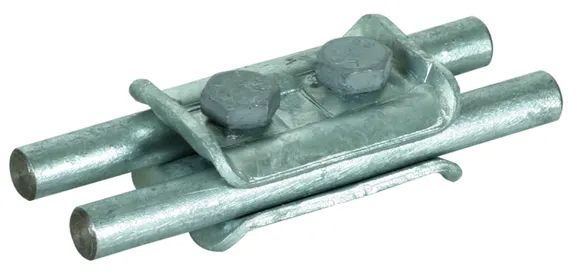

Part No. 307000 PV 7.10 SKM8X20 STTZN

GTIN 4013364024151, Customs tariff No. (EU): 85359000, Gross weight: 107.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with two screws, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 STTZN
Part No.: 307000
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 307000 was added to Notepad.

Go to Notepad

Product 307000 was added to the cart.

Go to Web-Shop

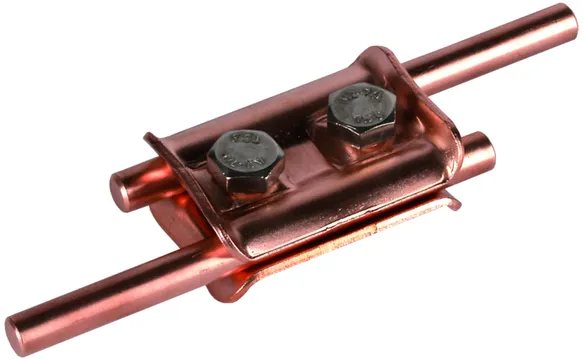

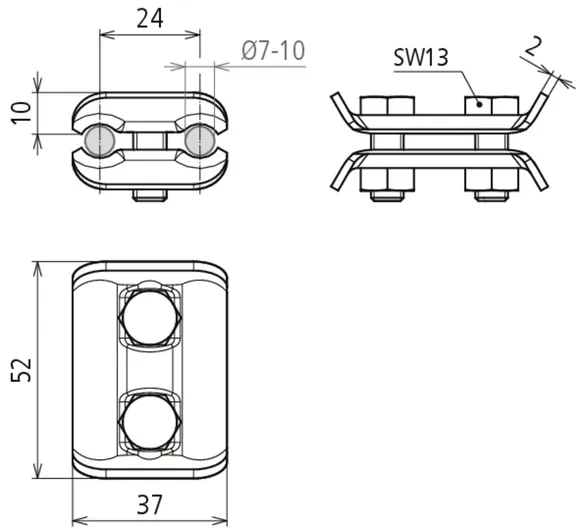

Part No. 307007 PV 7.10 SKM8X20 CU

GTIN 4013364024168, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with two screws, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 7-10 mm
Clamping range (stranded / cable): 16-95 mm2
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 CU
Part No.: 307007
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 7-10 mm
Clamping range (stranded / cable) 16-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 307007 was added to Notepad.

Go to Notepad

Product 307007 was added to the cart.

Go to Web-Shop

For different diameters with one screw

2 Products

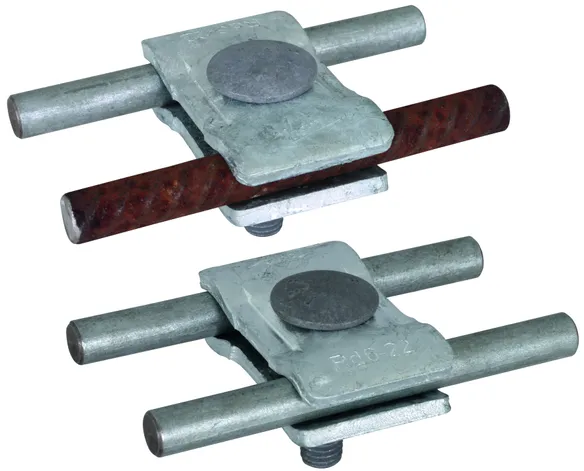

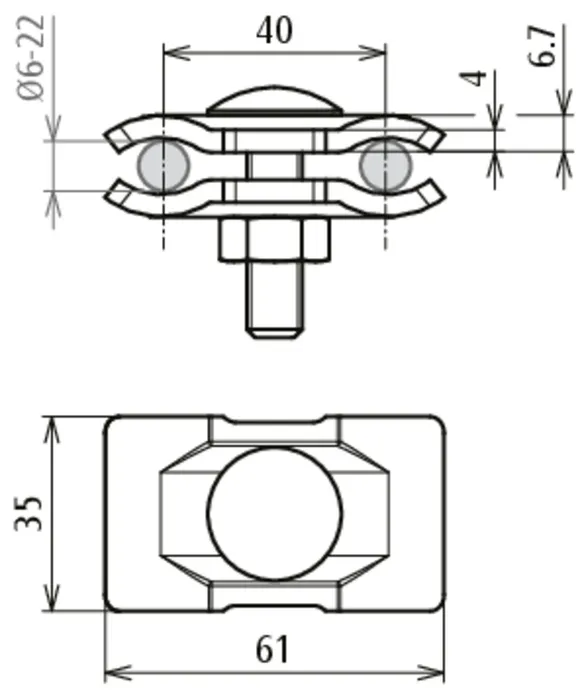

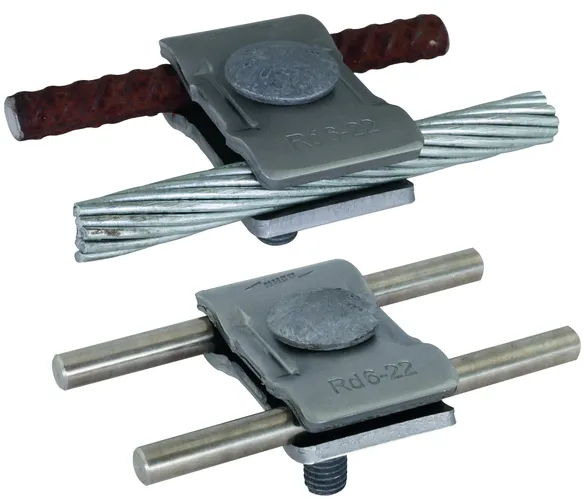

Part No. 306121 PV 6.22 FRM10X40 STBLANK

GTIN 4013364284920, Customs tariff No. (EU): 85359000, Gross weight: 163.16 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with one screw, St/blank
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STBLANK
Part No.: 306121
or equivalent.

Certificates



Technical data

Material of clamp St/bare
Clamping range Rd / Rd 6-22 / 6-22 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 6.1 kA
*) For exact classification, see test certificate.

Product 306121 was added to Notepad.

Go to Notepad

Product 306121 was added to the cart.

Go to Web-Shop

Part No. 306122 PV 6.22 FRM10X40 STTZN

GTIN 4013364284937, Customs tariff No. (EU): 85359000, Gross weight: 167.12 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STTZN
Part No.: 306122
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 6-22 / 6-22 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 6.1 kA
*) For exact classification, see test certificate.

Product 306122 was added to Notepad.

Go to Notepad

Product 306122 was added to the cart.

Go to Web-Shop

For different diameters 4-10 mm with two scews

2 Products

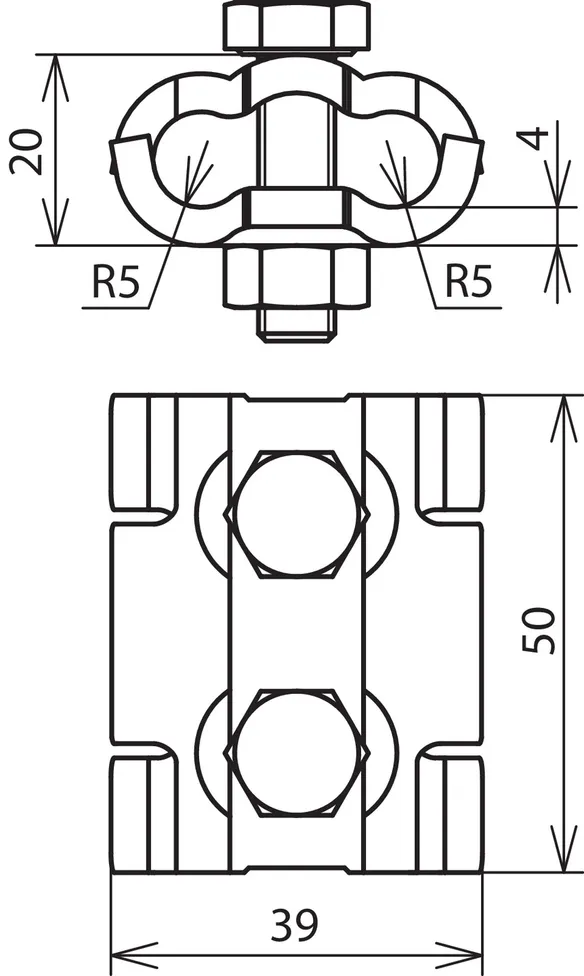

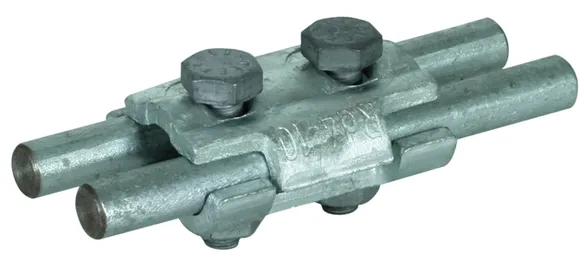

Part No. 305000 PV 4.10 SKM8X30 STTZN

GTIN 4013364041936, Customs tariff No. (EU): 85359000, Gross weight: 148.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector for different diameters 4-10 mm, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 4-10 mm
Screw: M8 x 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 STTZN
Part No.: 305000
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 4-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 305000 was added to Notepad.

Go to Notepad

Product 305000 was added to the cart.

Go to Web-Shop

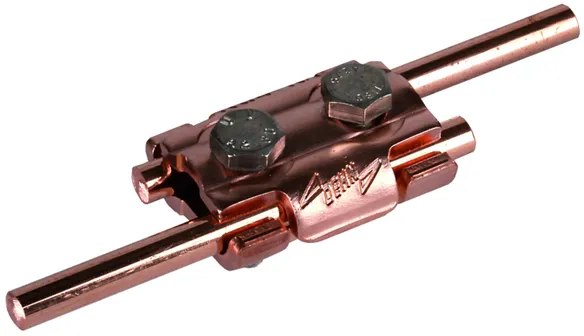

Part No. 305007 PV 4.10 SKM8X30 CU

GTIN 4013364052307, Customs tariff No. (EU): 85369095, Gross weight: 153.00 g, PU: 50.00 pc(s)

Images

Additional information

Parallel connector for different diameters 4-10 mm, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 4-10 mm
Clamping range (stranded / cable): 10-70 mm2
Screw: M8 x 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 CU
Part No.: 305007
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 4-10 mm
Clamping range (stranded / cable) 10-70 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

Product 305007 was added to Notepad.

Go to Notepad

Product 305007 was added to the cart.

Go to Web-Shop

For equal and different cable diameters, small

With thread in the base part and lock nut M8.
Specified short-circuit current applies to 70 mm² Cu cable.

1 Product

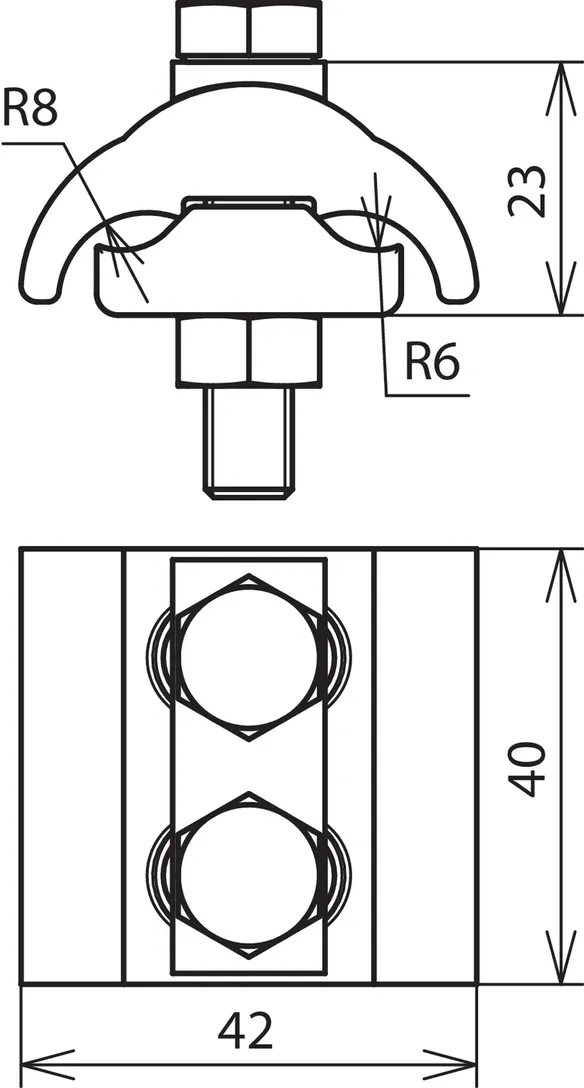

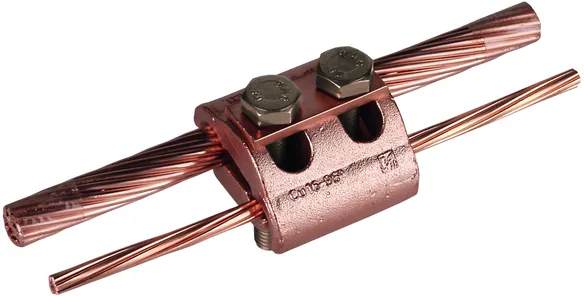

Part No. 306100 PV 5.12.5 SKM8X45 CU

GTIN 4013364024113, Customs tariff No. (EU): 85359000, Gross weight: 238.30 g, PU: 25.00 pc(s)

Images

Additional information

Parallel connector for different cable diameters, small, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-12.5 mm
Clamping range (stranded / cable): 16-95 mm2
Screw: M8 x 45 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.12.5 SKM8X45 CU
Part No.: 306100
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 5-12.5 mm
Clamping range (stranded / cable) 16-95 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

Product 306100 was added to Notepad.

Go to Notepad

Product 306100 was added to the cart.

Go to Web-Shop

For equal and different cable diameters, large

With thread in the base part and lock nut M10.
Specified short-circuit current applies to 70 mm² Cu cable.

1 Product

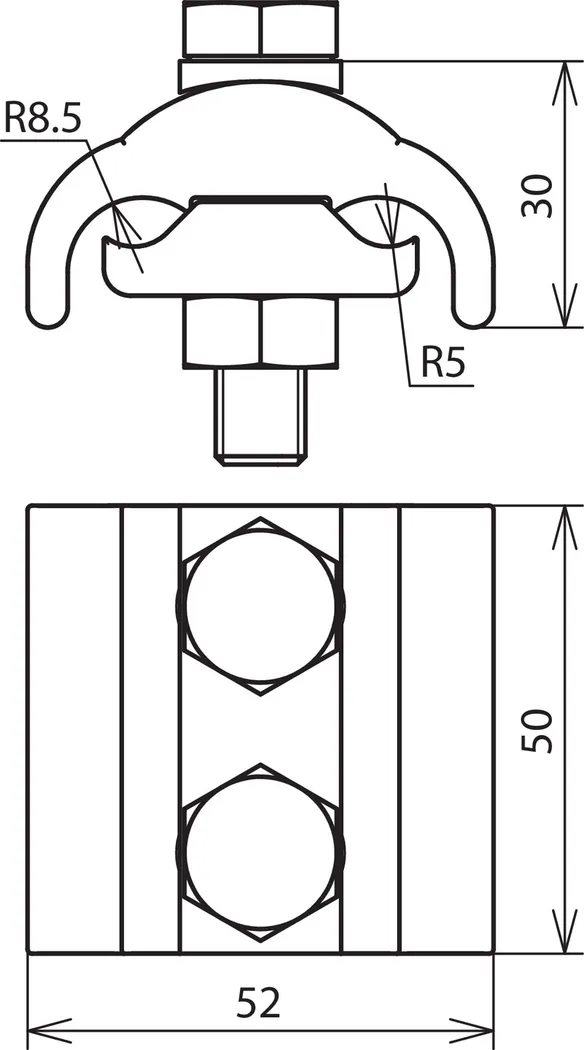

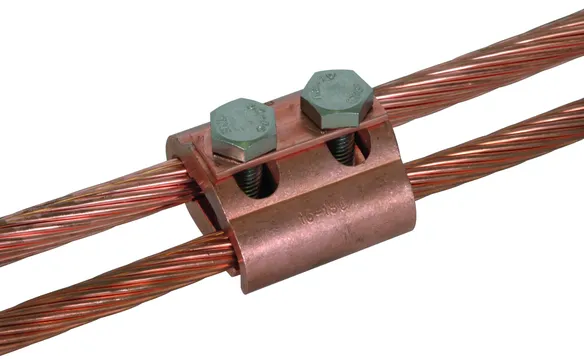

Part No. 306101 PV 5.16 SKM10X50 CU

GTIN 4013364024120, Customs tariff No. (EU): 85359000, Gross weight: 412.00 g, PU: 25.00 pc(s)

Images

Additional information

Parallel connector for different cable diameters, large, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-16 mm
Clamping range (stranded / cable): 16-150 mm2
Screw: M10 x 50 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.16 SKM10X50 CU
Part No.: 306101
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 5-16 mm
Clamping range (stranded / cable) 16-150 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

Product 306101 was added to Notepad.

Go to Notepad

Product 306101 was added to the cart.

Go to Web-Shop
