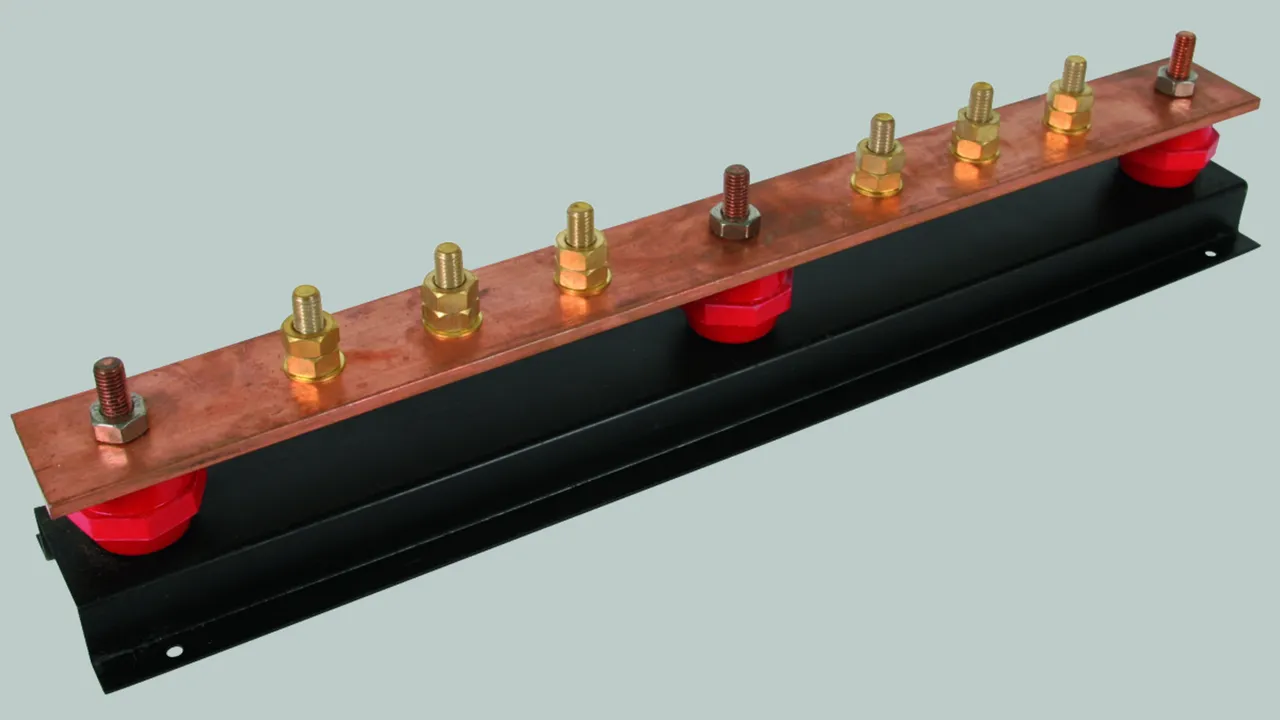

Earth Bars and Disconnecting Links (old)

  • DEHN high quality earth bars come with or without disconnection links
  • High grade C101 50 x 6 mm copper
  • Brass / Stainless steel fittings
  • Reinforced polyester insulators
  • Top Hat'channel base mild steel black powder coated

A MODEL

Earth bar without disconnecting link

5 Products

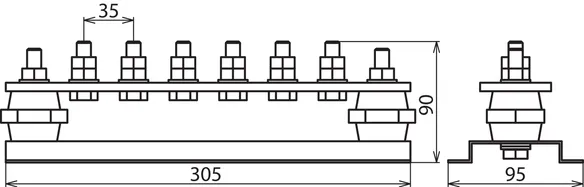

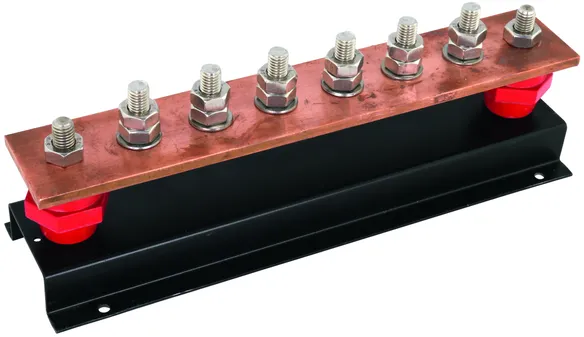

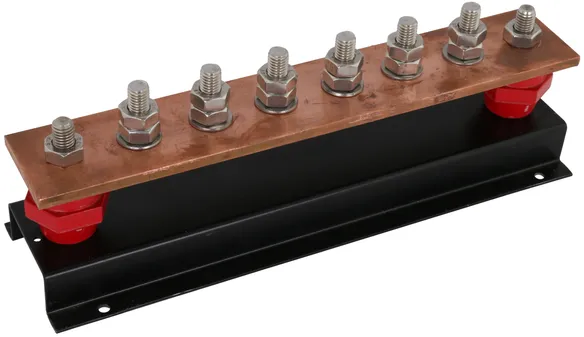

Part No. 118350 EB 6W M10 50X6 CU

GTIN 4013364299405, Gross weight: 1.90 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 305 x 95 x 90 mm
Number of ways 6

Product 118350 was added to Notepad.

Go to Notepad

Product 118350 was added to the cart.

Go to Web-Shop

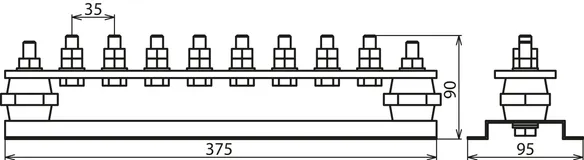

Part No. 118351 EB 8W M10 50X6 CU

GTIN 4013364299412, Gross weight: 2.33 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 375 x 95 x 90 mm
Number of ways 8

Product 118351 was added to Notepad.

Go to Notepad

Product 118351 was added to the cart.

Go to Web-Shop

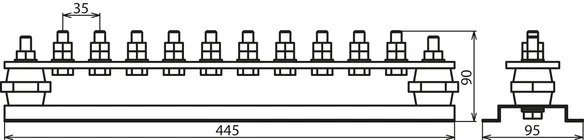

Part No. 118352 EB 10W M10 50X6 CU

GTIN 4013364299429, Gross weight: 2.77 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 445 x 95 x 90 mm
Number of ways 10

Product 118352 was added to Notepad.

Go to Notepad

Product 118352 was added to the cart.

Go to Web-Shop

Part No. 118353 EB 12W M10 50X6 CU

GTIN 4013364299436, Gross weight: 3.50 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 515 x 95 x 90 mm
Number of ways 12

Product 118353 was added to Notepad.

Go to Notepad

Product 118353 was added to the cart.

Go to Web-Shop

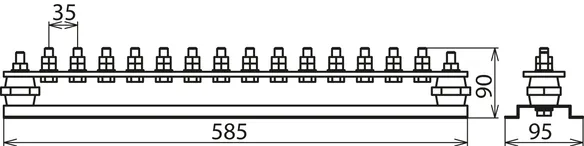

Part No. 118354 EB 14W M10 50X6 CU

GTIN 4013364299443, Gross weight: 3.94 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 585 x 95 x 90 mm
Number of ways 14

Product 118354 was added to Notepad.

Go to Notepad

Product 118354 was added to the cart.

Go to Web-Shop

B MODEL

Earth bar with single disconnecting link

5 Products

Part No. 118360 EB 6W 1DL M10 50X6 CU

GTIN 4013364299450, Gross weight: 2.49 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 382 x 95 x 90 mm
Number of ways 6

Product 118360 was added to Notepad.

Go to Notepad

Product 118360 was added to the cart.

Go to Web-Shop

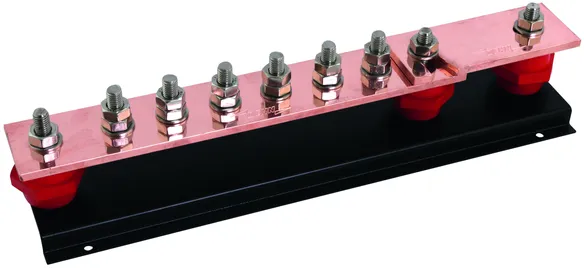

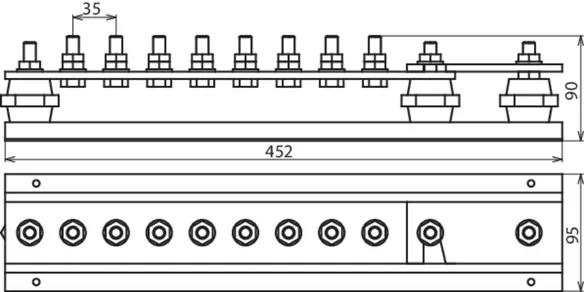

Part No. 118361 EB 8W 1DL M10 50X6 CU

GTIN 4013364299467, Gross weight: 2.93 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 452 x 95 x 90 mm
Number of ways 8

Product 118361 was added to Notepad.

Go to Notepad

Product 118361 was added to the cart.

Go to Web-Shop

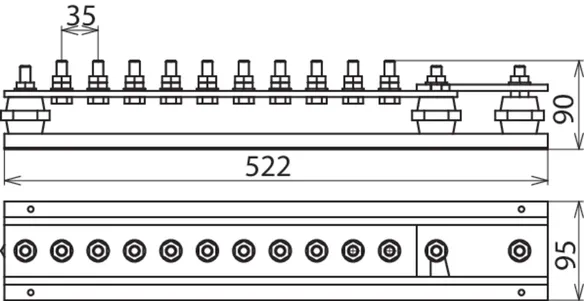

Part No. 118362 EB 10W 1DL M10 50X6 CU

GTIN 4013364299474, Gross weight: 3.36 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 522 x 95 x 90 mm
Number of ways 10

Product 118362 was added to Notepad.

Go to Notepad

Product 118362 was added to the cart.

Go to Web-Shop

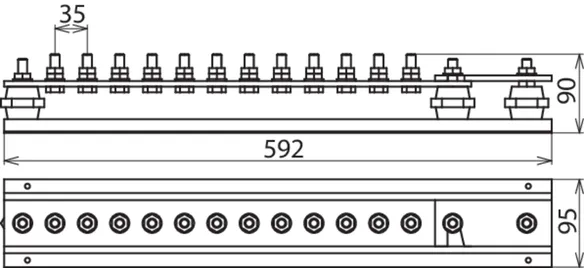

Part No. 118363 EB 12W 1DL M10 50X6 CU

GTIN 4013364299481, Gross weight: 4.09 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 592 x 95 x 90 mm
Number of ways 12

Product 118363 was added to Notepad.

Go to Notepad

Product 118363 was added to the cart.

Go to Web-Shop

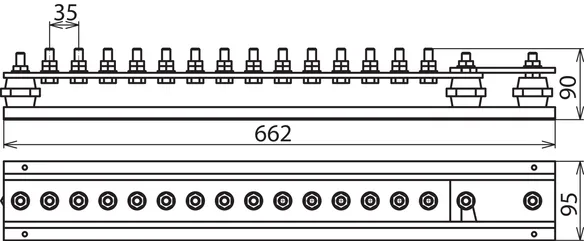

Part No. 118364 EB 14W 1DL M10 50X6 CU

GTIN 4013364299498, Gross weight: 4.52 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 662 x 95 x 90 mm
Number of ways 14

Product 118364 was added to Notepad.

Go to Notepad

Product 118364 was added to the cart.

Go to Web-Shop

C MODEL

Earth bar with twin disconnecting link

5 Products

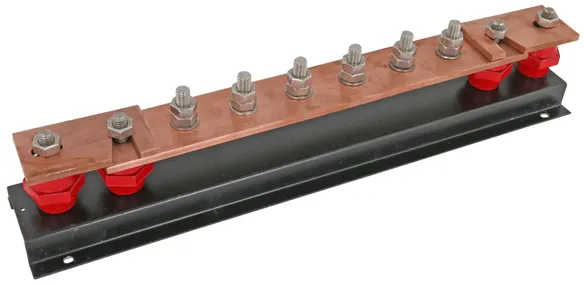

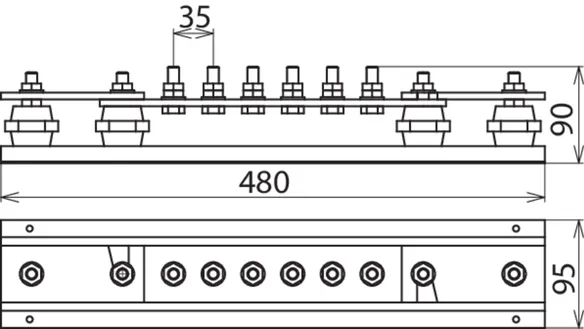

Part No. 118370 EB 6W 2DL M10 50X6 CU

GTIN 4013364299504, Gross weight: 3.11 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 480 x 95 x 90 mm
Number of ways 6

Product 118370 was added to Notepad.

Go to Notepad

Product 118370 was added to the cart.

Go to Web-Shop

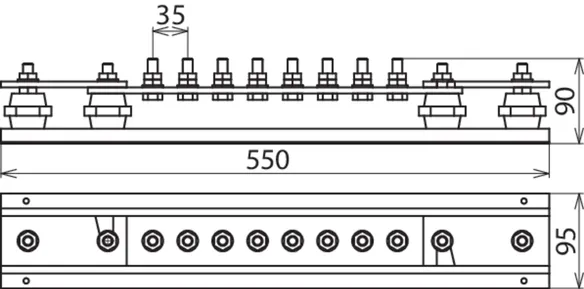

Part No. 118371 EB 8W 2DL M10 50X6 CU

GTIN 4013364309319, Gross weight: 3.54 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 550 x 95 x 90 mm
Number of ways 8

Product 118371 was added to Notepad.

Go to Notepad

Product 118371 was added to the cart.

Go to Web-Shop

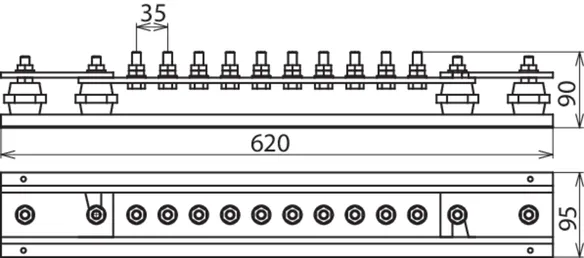

Part No. 118372 EB 10W 2DL M10 50X6 CU

GTIN 4013364309326, Gross weight: 3.98 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 620 x 95 x 90 mm
Number of ways 10

Product 118372 was added to Notepad.

Go to Notepad

Product 118372 was added to the cart.

Go to Web-Shop

Part No. 118373 EB 12W 2DL M10 50X6 CU

GTIN 4013364309333, Gross weight: 4.70 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 690 x 95 x 90 mm
Number of ways 12

Product 118373 was added to Notepad.

Go to Notepad

Product 118373 was added to the cart.

Go to Web-Shop

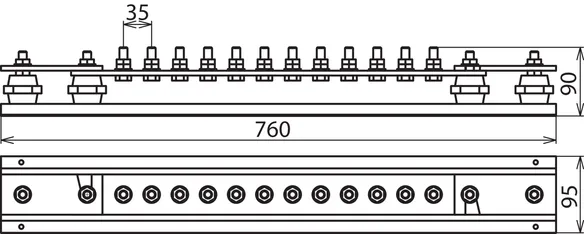

Part No. 118374 EB 14W 2DL M10 50X6 CU

GTIN 4013364357853, Gross weight: 5.55 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 760 x 95 x 90 mm
Number of ways 14

Product 118374 was added to Notepad.

Go to Notepad

Product 118374 was added to the cart.

Go to Web-Shop

D MODEL

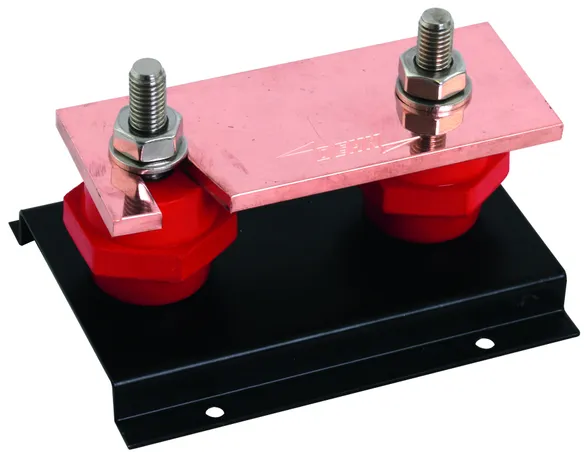

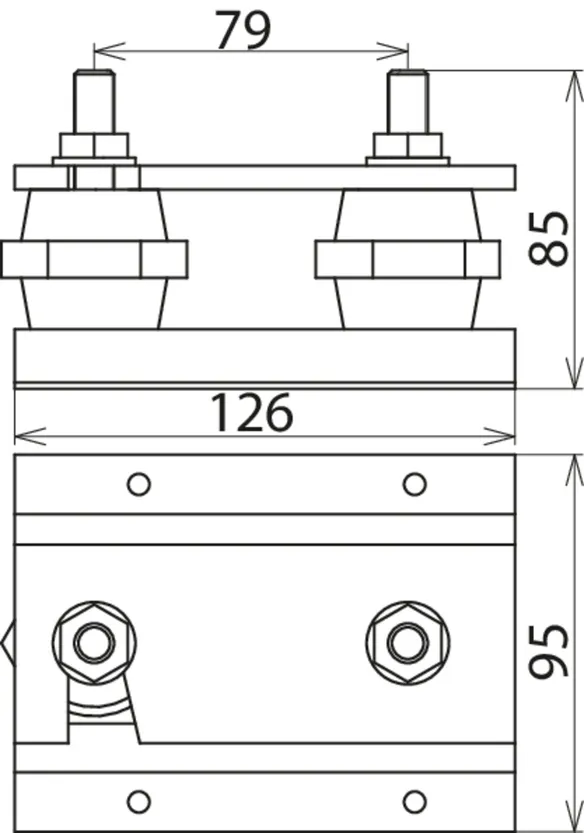

Disconnecting link

1 Product

Part No. 118380 EB DL M10 50X6 CU

GTIN 4013364299528, Gross weight: 780.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Cu
Dimensions (l x w x h) 126 x 95 x 85 mm

Product 118380 was added to Notepad.

Go to Notepad

Product 118380 was added to the cart.

Go to Web-Shop

E MODEL

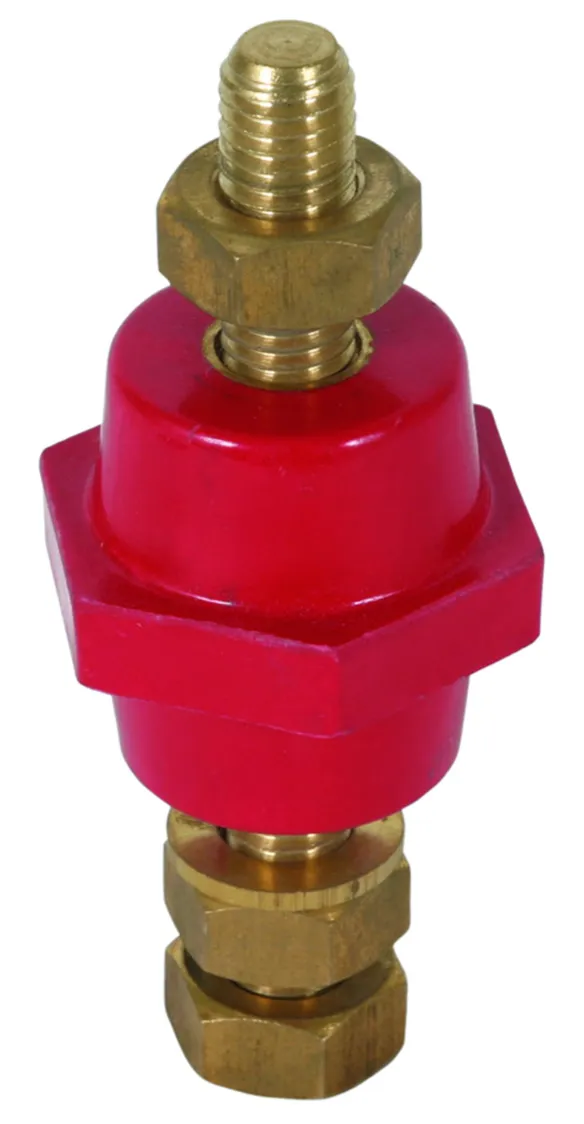

Insulator complete with 2 off brass studs and 3 Nuts M10 Threads

1 Product

Part No. 118385 INS--INSUL 2xM10 H35 RED

GTIN 4013364299535, Gross weight: 120.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material (DMC) Polyester
Dimensions (l x w x h) 35 x 33 x 25 mm

Product 118385 was added to Notepad.

Go to Notepad

Product 118385 was added to the cart.

Go to Web-Shop
